Titanium coils are normally made from 1” O.D. Titanium Pipe. It can be supplied in various Shapes as per customer requirement. Typical Applications are as a Cooling Coil in Acid Zinc, Acid Copper and also Hard Chrome Baths.

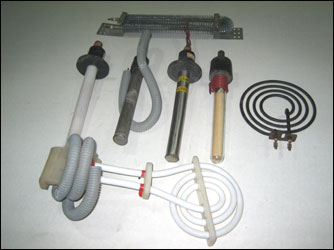

For alkali solutions 304 or 316 qualities are to be used. 316 qualities of S. S. Heaters can also be used for diluted acid solutions, phosphateing, Trichloroethylene and De-ionized water.

For water, oil, alkali cleaners and caustics. M. S. heaters can be used.

This heaters has to be used for acid baths like Sulphuric, hydrochloric, nitric and etching purpose.

To be used for all type of acid solutions like chromic, Sulphuric, etc. [except hydrofluoric & phosphoric]. This heater can also be used for the bath of Nickel, Anodising and Electropolishing.

To be used in R & D / Laboratories, Nickel , Alkali, Gold solutions etc.

When large volume of production is required, it is convenient to use Plating Racks or Jigs. These jigs are made from copper or Brass and the contacts are made from Spring Steel or Phosphor Bronze. The Unit is then coated with an Acid / Alkali resistant Plastisol or PVC Coating.

Jigs can even be made from S. S. and Titanium for specific applications.

Jigs have to designed in accordance with the shape & size of component, Tank Size, production desired, and Current Distribution. We undertake designing & fabrication of Jigs for both Manual and Auto Matic Plants.

These are Units with Digital Temperature Indicator cum Controller. They are mounted in a Acid / Alkali resistant PVC / Polypropylene Body with suitable gasket to prevent fumes inflow into the body. The Units are complete with a PT 100 type Sensor which can be installed in the Plating Vat using Titanium or Glass Tubing. The Units are easy to install and maintain.
